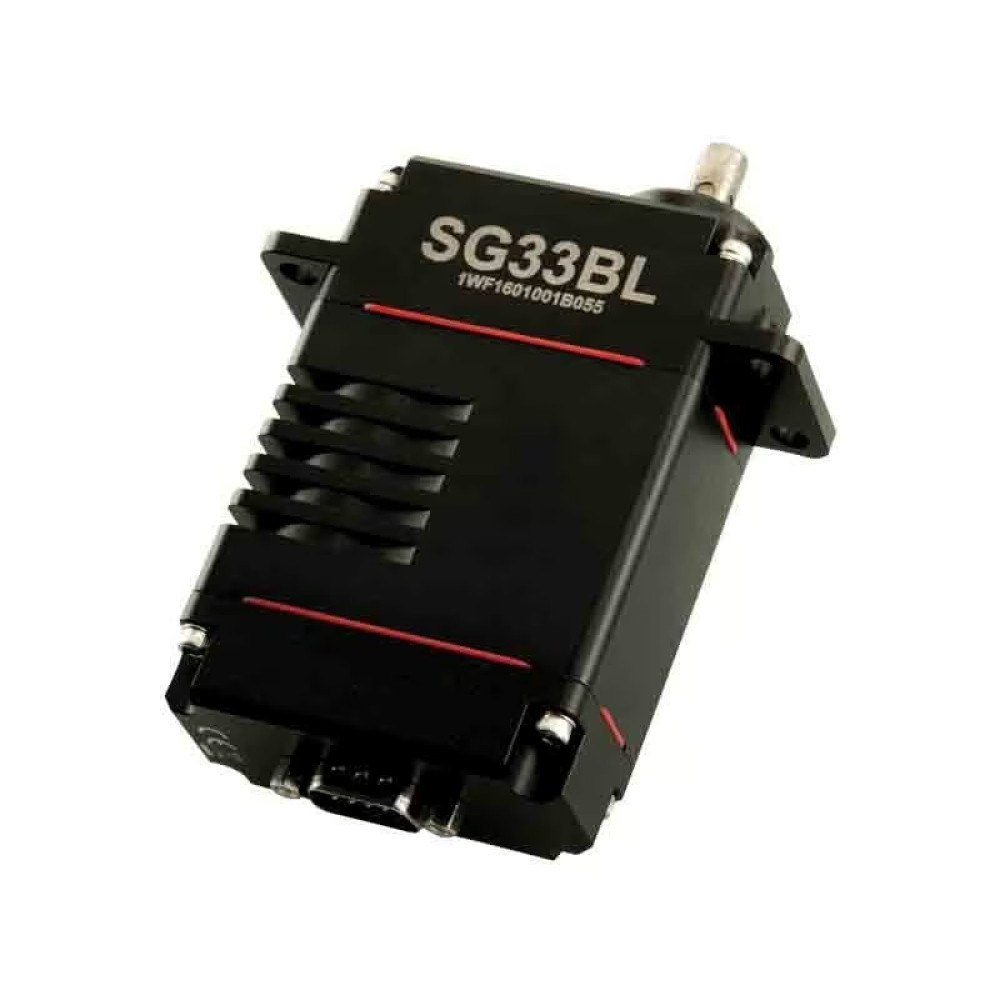

SG33BL-CAN-24V Cable Gland Actuator

SG33BL-CAN-24V Cable Gland Actuator

SG33BL-CAN-24V Cable Gland Actuator is the specific Hitec RCD catalog item under manufacturer part number 40331C. This page refers to the exact model or configuration named above; final compatibility, included components, approval basis, and documentation should be confirmed against that identifier before ordering.

Exact product identification

• Manufacturer: Hitec RCD
• Product: SG33BL-CAN-24V Cable Gland Actuator
• Part number / SKU: 40331C
• Model: SG33BL-CAN-24V

The Hitec SG33BL-CAN-24V is a waterproof industrial brushless actuator with a cable-gland connection and CAN 2.0A/B or UAVCAN control. It operates from 18.0 to 32.0 V and combines a contactless magnetic encoder with a 32-bit programmable digital amplifier, six ball bearings, and two needle bearings.

Performance and construction

The 24 V model covers approximately 0.25 to 0.14 seconds per 60 degrees and 110.3 to 196.0 kgf-cm of torque across its operating range. Its black-anodized aluminium housing measures 64 x 33 x 90 mm, is rated IP68, and supports programmable servo travel or multi-turn operation. Part 40331C is the cable-gland version for high-load industrial and autonomous installations.

Ordering note: Request this item using reference 40331C so Fly Supply can verify the exact configuration, current availability, supporting documents, and application fit before supply.
