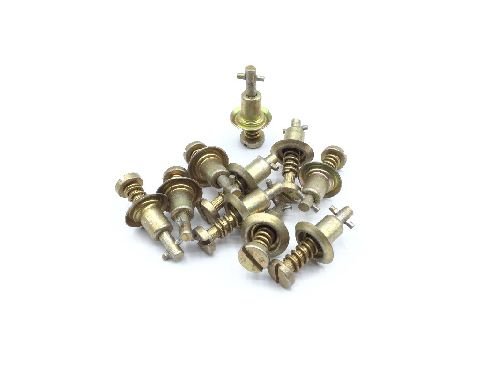

1126000-12 — Turnlock Fastener Stud Assembly
- Listed part number:1126000-12
- Catalogue reference:FSHW-F78599EE20B5
- Availability: Availability confirmed in your offer
Price on request
Product overview
Request this exact part number with quantity, required delivery date and document requirements.
Description
Technical details and documents
| Requested part number | 1126000-12 |
|---|---|
| Product type | Turnlock Fastener Stud Assembly |
| NSN | 5325-00-141-7951 |
| Material | Steel |
| Distance From Engaging Member To Largest Bearing Surface Of Head | Between 0.872 inches and 0.887 inches |
| Drive Type | Slotted |
| Eyelet Length | 0.322 inches |
| Eyelet Outside Diameter | Between 0.244 inches and 0.250 inches |
| Material Accommodated Thickness | Between 0.330 inches and 0.389 inches |
| Securing Device Type | Washer |
| Stud Assembly Style | Stud assembly |
| Stud Head Height | 0.093 inches |
| Turnlock Stud Head Style | Flat fillister |
| Diameter | Between 0.298 inches and 0.308 inches |
Values retain their original units and notation. Confirm suitability against the current drawing or standard. Actual manufacturer, configuration, availability, price and documents will be confirmed in the quotation before purchase.
