Navigator comparison for GPS/NAV/COM panel upgrades

Garmin GTN 750Xi vs GTN 650Xi - choosing the right navigator

GTN 750Xi and GTN 650Xi serve similar upgrade goals but fit different panel and workflow needs. This guide helps buyers define the right Garmin navigator request before pricing.

Request a quote View Garmin products
  • Compare screen size and panel fit
  • Plan connected avionics
  • Prepare GTN Xi quote details

Content updated:

Panel space is the first constraint

GTN 750Xi offers a larger interface, while GTN 650Xi can fit projects where space is tighter. The right choice starts with the panel layout, not only the feature list.

Connected systems matter

Audio panel, transponder, displays, antennas and database needs can change the quotation. A GTN request should describe the full avionics environment.

Think in packages, not boxes

A navigator quote may require accessories, mounting hardware, antennas or related Garmin equipment, especially in IFR-focused panel upgrades.

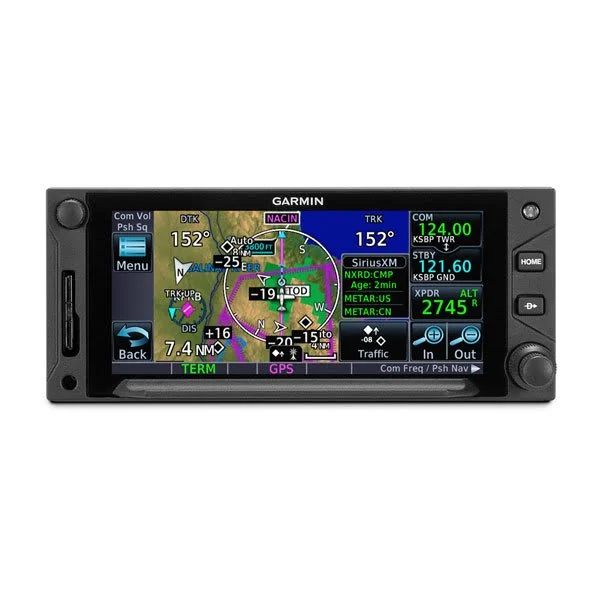

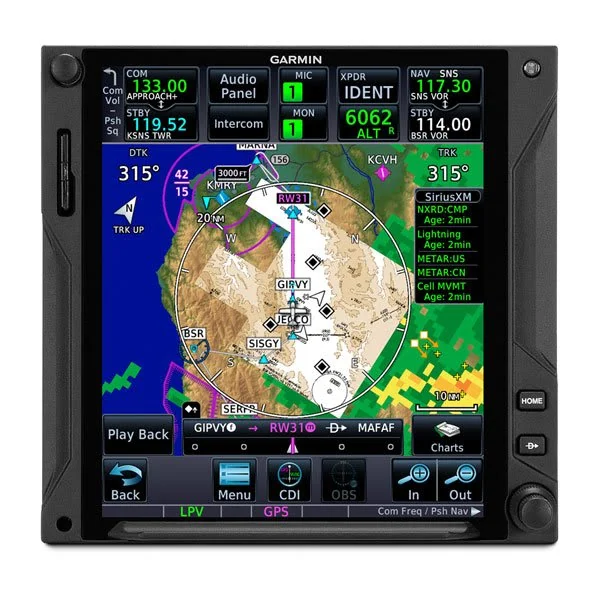

Garmin GTN 750XiGarmin GTN 650Xi
Garmin reference photography · Garmin GTN 750Xi · Garmin GTN 650Xi

Before choosing: compare the complete requirement

Use this decision aid with the existing guide. Confirm the exact aircraft, configuration and current manufacturer data before ordering.

DecisionFirst considerationSecond considerationBefore ordering
Display and heightGTN 750Xi: 6.9-inch display, 6-inch unit height.GTN 650Xi: 4.9-inch display, 2.65-inch unit height.Check the actual installation drawing, depth and clearance.
Panel workflowLarger-format interface and chart presentation.More compact panel footprint.Review viewing/access needs in the actual panel.
Package scopeConfirm antennas, connected displays and control functions.Confirm the same integration questions for the exact variant.Database coverage, subscriptions and installation items are separate scope questions.

Illustrative example — not a real customer case

A smaller navigator now or a larger panel change?

An illustrative owner compares 650Xi and 750Xi prices without an installation drawing or a database scope.

  1. Use the current panel envelope and compare two itemised offers with the same connected equipment, antenna, installation and database responsibilities.

The comparison now has an explicit scope. This illustrative case does not approve a model, quote a price or promise a completion date.

Sources and further reading

Use this guide to prepare a request. Exact suitability, installation eligibility, applicable documentation and service scope are confirmed for the specific equipment and application.

Who prepares these guides?

Published by Nisso Dekalo Ltd.

Published by Nisso Dekalo Ltd., using the cited manufacturer and regulator publications and our equipment-enquiry process. Our laboratory and offices support local enquiries; aircraft and helicopter installation and maintenance work is carried out at Avir-Rom (1993). The worked examples and original diagrams are illustrations. Exact suitability and work scope are reviewed for the particular equipment and application.

Our local laboratory, installation and maintenance support
Explore all practical guides

Make a better decision

Compare your panel workflow and recurring scope

The larger display is useful only if the installation and daily workflow benefit from it. Separate the navigator price from installation, connected equipment and database coverage.

Situation / optionCompareNext step
GTN 750Xi6.9-inch display; the larger-format series supports terminal chart presentation described in Garmin Pilot Guide 190-02327-03 Rev. G.Use the installation drawing to check height, width, depth, connectors and viewing/reach in the actual panel.
GTN 650Xi4.9-inch display and a smaller-height format; useful where panel allocation is the controlling constraint.Compare the tasks performed on the navigator with those handled by connected displays.
Both optionsNavigation, COM/NAV needs, supported interfaces, antenna/rack/harness items and approved installation are one package review.Request two itemised offers on the same equipment and documentation basis.
Database and ownershipCoverage region, charts, subscriptions, update access, installation and future integration can be separate costs.Record first-supply scope and recurring responsibilities without assuming a subscription is included.
Exact equipmentInterfaces / connectionsAccessories / kitsReviewed work / documents
Purchasing-package map. It identifies scope and does not define wiring or installation.

Prepare your own enquiry

Replace the bracketed fields with your actual details. Keep unknown information marked unknown. This is a request template, not an order.

Illustrative request example — not a real customer case
Aircraft / current navigator / panel photo: DEMO aircraft; current navigator and panel photograph attached
Available panel envelope from installer drawing: Installer drawing to establish available height, depth and clearances
Connected display, audio and transponder models: Current display, audio and transponder list attached
Operating regions, database/charts and package scope: Compare 650Xi/750Xi packages with stated regions, database and chart scope

Technical terms in plain language
P/N
The full part/configuration identifier, preserving every suffix.
S/N
The individual unit serial; it is separate from the model and P/N.
Installation eligibility
The aircraft-specific suitability/approval question resolved through the applicable data and responsible organisation.
Sources and further reading · References checked:

Document identifiers and revisions below describe the cited references. Confirm the current applicable revision for the exact equipment before work or supply.

Dealer and quotation support

Supplier contact

Nisso Dekalo Ltd supports Garmin Aviation enquiries in Israel. Verify the current dealer listing through Garmin, then send the exact aircraft and part-number context needed for an accurate quotation.

Dealer listing you can verify

Use Garmin’s official dealer locator to confirm the current Aviation listing and contact details before purchase.

Operating since 1968

Longstanding aviation parts and avionics procurement experience for pilots, aircraft owners, operators and maintenance teams.

Quote by aircraft and part number

Requests are checked against the aircraft, installed avionics, exact Garmin model, accessories, documentation and required date.

Need a Garmin quote by part number?

Send the aircraft make/model, current avionics, exact Garmin model or part number, required accessories and target date. Compatibility and approved installation data are confirmed for the specific aircraft before ordering.

Request a quote

Relevant Garmin products

GTN 635Xi, Helicopter, Black, Standard GTN 635Xi, Helicopter, Black, Standard 010-01998-02 GTN 650Xi, Gray, Standard GTN 650Xi, Gray, Standard 010-01999-31 GTN 650Xi, Helicopter, Black, Standard GTN 650Xi, Helicopter, Black, Standard 010-01999-02 GTN 650Xi, NV, Helicopter, Black, Standard GTN 650Xi, NV, Helicopter, Black, Standard 010-01999-62 GTN 750Xi, Gray, Standard GTN 750Xi, Gray, Standard 010-02002-31 GTN 750Xi, Helicopter, Black, Standard GTN 750Xi, Helicopter, Black, Standard 010-02002-02 GTN 750Xi, NV, Helicopter, Black, Standard GTN 750Xi, NV, Helicopter, Black, Standard 010-02002-62 GTN625Xi, Black, Standard GTN625Xi, Black, Standard 010-01997-01

Garmin Aviation FAQ

When should I consider GTN 750Xi?

Consider it when the larger interface and panel space support the intended workflow.

Can GTN 650Xi be enough?

Yes. It can be the better fit when panel space, budget or project scope favors a smaller navigator.
