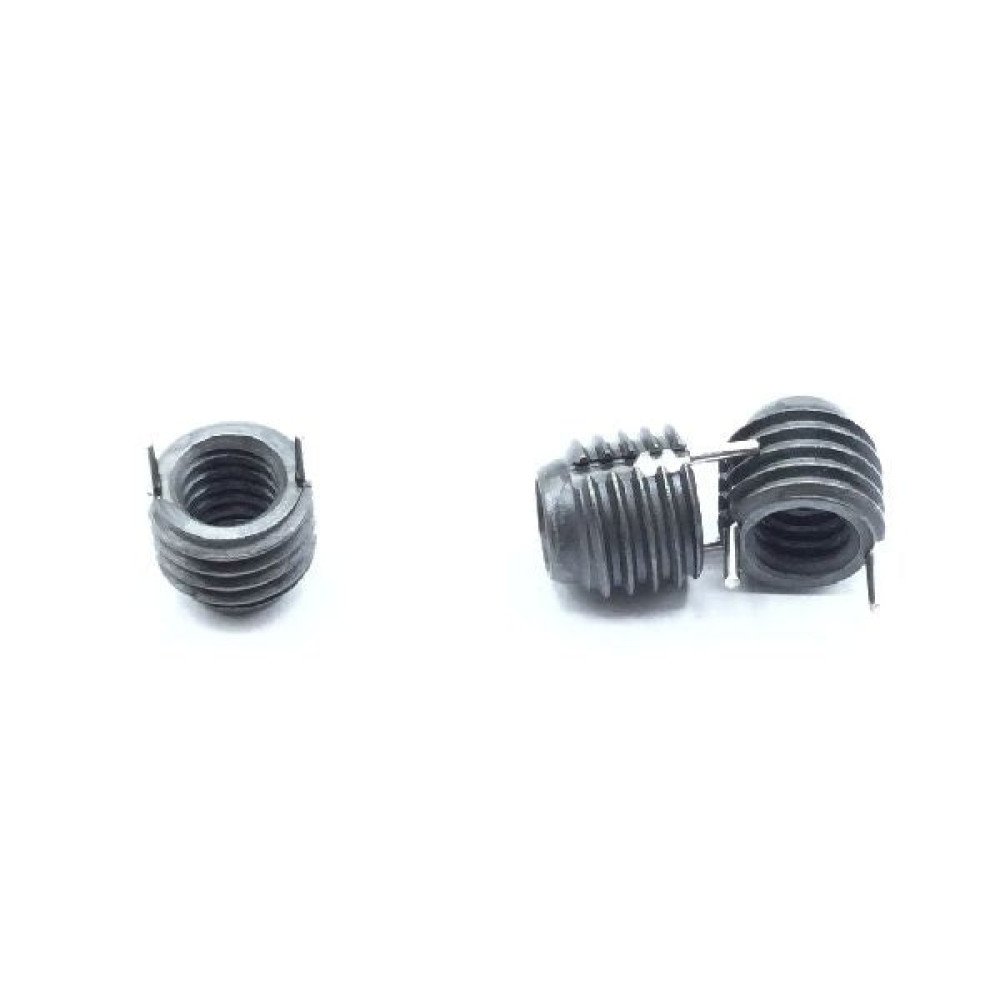

MS51830-104L — Threaded insert
- Listed part number:MS51830-104L
- Catalogue reference:FSHW-110EE91BB8C1
- Availability: Availability confirmed in your offer
Price on request
Product overview
Prepare a complete insert enquiry including the parent material, installed length and locking requirement. Include matching tooling when needed.
Description
Technical details and documents
| Requested part number | MS51830-104L |
|---|---|
| Reference family | MS51830 |
Technical reference data
| NSN | 5325-00-241-6829 |
|---|---|
| Product Series | MS |
| Material | Steel |
| Thread Size | 0.164 inches |
| Features | Individually keyed |
| Features Provided | Individually keyed |
| Insert Size | 0.250 in.-28 |
| Length | 0.220 inches |
| Material Specification | Cond b federal specification single material response qq-s-764 |
| Style Designator | Grooved keylock |
| Thread Qty Per Inch (tpi) | 32 |
| Thread Series Designator | Unc (coarse thread) |
Values retain their original units and notation. Confirm suitability against the current drawing or standard before ordering.
Details to include with your quotation request
- Internal thread and external installation size
- Installed length and parent material
- Free-running or locking configuration
- Matched tap, installation and removal tools
Include quantity, required delivery date, quantity breaks, drawing revision and document or traceability requirements. State explicitly whether an alternative may be considered.
The actual manufacturer, configuration, availability, price, lead time and documents will be confirmed in the agreed quotation. This listing does not establish stock or installation suitability.
