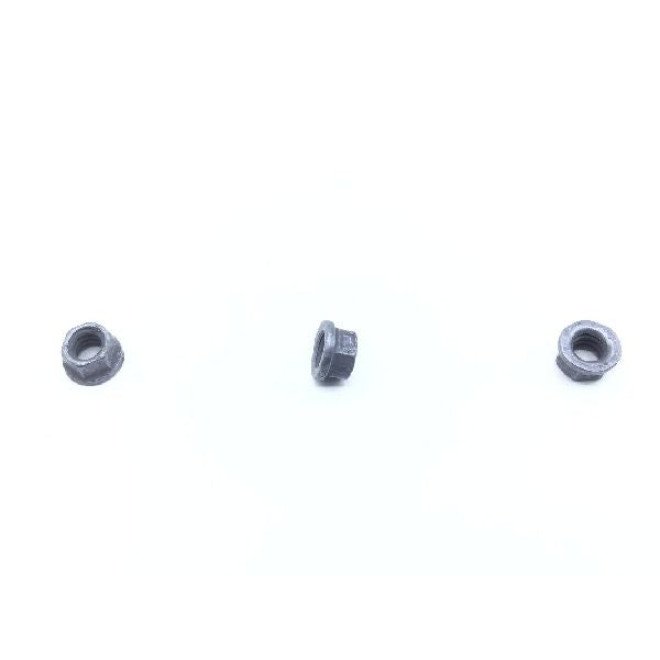

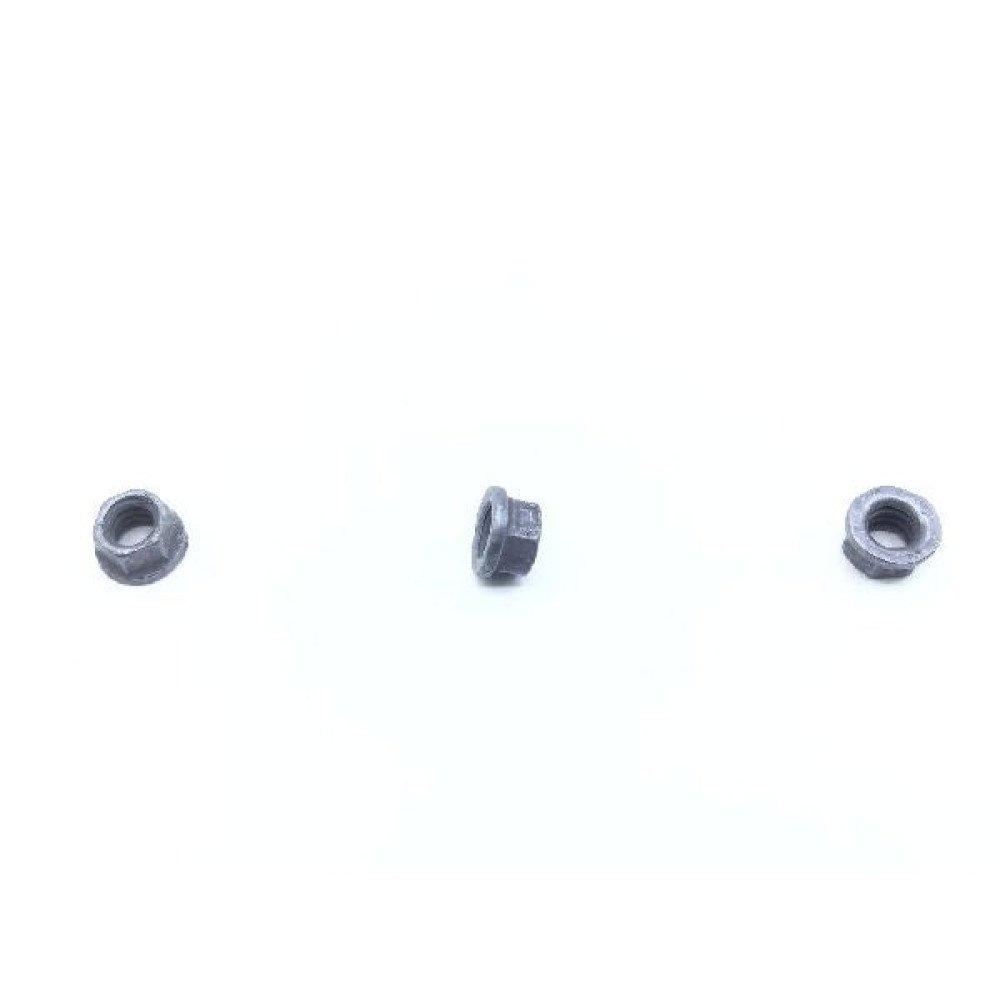

NAS1291C06M — Nut
- Listed part number:NAS1291C06M
- Catalogue reference:FSHW-19BD71A63993
- Availability: Availability confirmed in your offer
Price on request
Product overview
Find nuts and nutplates for a specified fastening assembly. Thread, locking type and mounting geometry must match the requested configuration.
Description
Technical details and documents
| Requested part number | NAS1291C06M |
|---|---|
| Reference family | NAS1291 |
Technical reference data
| NSN | 5310-00-878-9518 |
|---|---|
| Product Series | NAS |
| Material | Stainless Steel |
| Thread Class | 3b |
| Thread Series | Unc (coarse thread) |
| Thread Size | 0.138 inches |
| Locking Feature | Prevailing torque all metal design |
| Nut Style | Hexagon |
| Overall Height | Between 0.115 inches and 0.141 inches |
| Tempurature Rating | 550.0 degrees fahrenheit |
| Thread Direction | Right-hand |
| Thread Qty Per Inch (tpi) | 32 |
| Washer Outside Diameter | 0.244 inches |
| Washer Thickness | 0.010 inches |
| Width Across Flats | Between 0.181 inches and 0.190 inches |
Values retain their original units and notation. Confirm suitability against the current drawing or standard before ordering.
Details to include with your quotation request
- Thread size, pitch and locking method
- Fixed or floating configuration
- Lug pattern, rivet spacing and mounting envelope
- Material, finish and temperature requirement
Include quantity, required delivery date, quantity breaks, drawing revision and document or traceability requirements. State explicitly whether an alternative may be considered.
The actual manufacturer, configuration, availability, price, lead time and documents will be confirmed in the agreed quotation. This listing does not establish stock or installation suitability.
