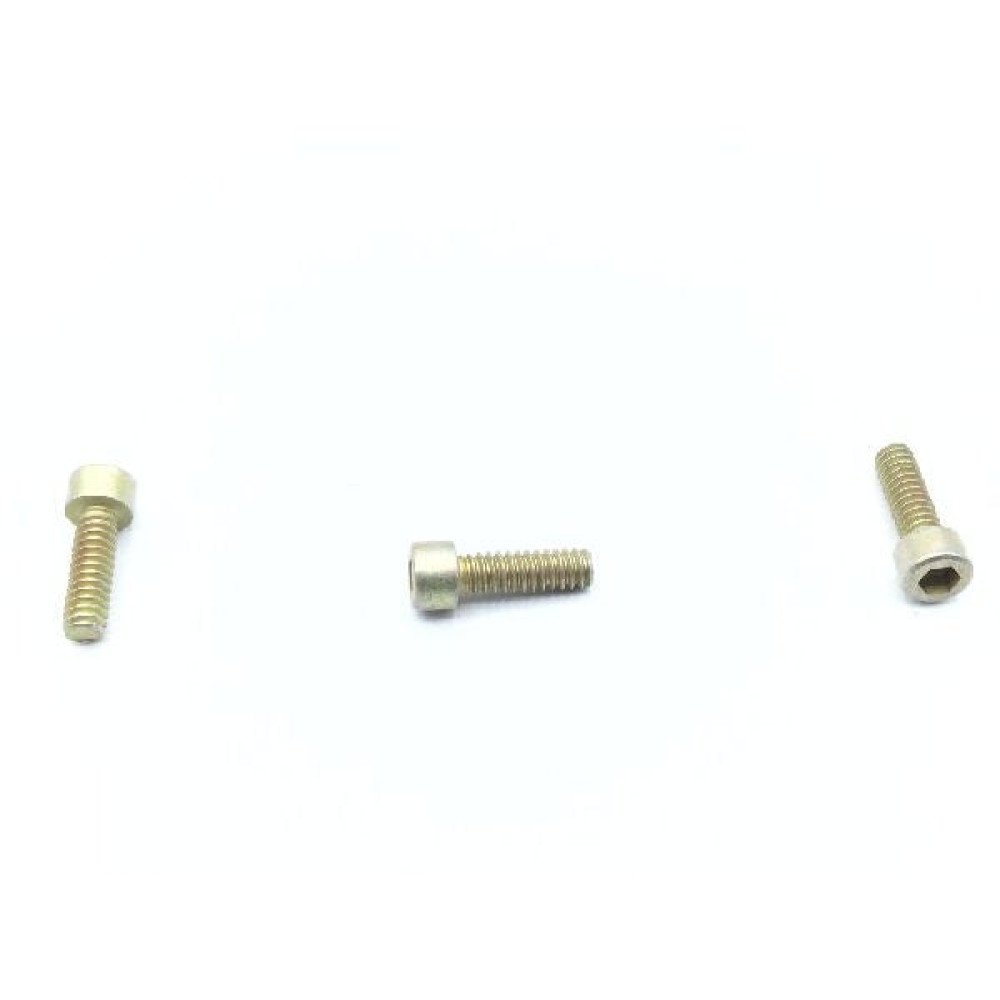

NAS1352-04-6P — Screw
- Listed part number:NAS1352-04-6P
- Catalogue reference:FSHW-58FD53A8D1CF
- Availability: Availability confirmed in your offer
Price on request
Product overview
Compare screws and bolts by the complete reference, thread, head and grip requirements. Preserve suffixes when requesting quantities or alternatives.
Description
Technical details and documents
| Requested part number | NAS1352-04-6P |
|---|---|
| Reference family | NAS1352 |
Technical reference data
| NSN | 5305-00-089-0269 |
|---|---|
| Product Series | NAS |
| Head Style | Flat chamfer |
| Material | Steel |
| Surface Treatment | Qq-p-416 type 2 cl 3 federal specification single treatment response |
| Thread Class | 3a |
| Fastener Length | Between 0.359 inches and 0.391 inches |
| Hardness Rating | 36.0 rockwell c and 45.0 rockwell c |
| Head Height | Between 0.108 inches and 0.112 inches |
| Internal Drive Style | Hexagon |
| Material Specification | 66 federal standard single material response |
| Min. Tensile Strength (psi) | 160000 pounds per square inch |
| Minimum Yield Strength | 130000 pounds per square inch |
| Specification Data | 80205-nas1352 professional/industrial association standard |
| Thread Diameter | 0.112 inches |
| Thread Direction | Right-hand |
| Thread Length | Between 0.309 inches and 0.359 inches |
| Thread Qty Per Inch (tpi) | 40 |
| Thread Series Designator | Unc (coarse thread) |
| Width Across Flats | Between 0.093 inches and 0.095 inches |
| Head Diameter | Between 0.176 inches and 0.183 inches |
Values retain their original units and notation. Confirm suitability against the current drawing or standard before ordering.
Details to include with your quotation request
- Thread series, pitch and class
- Length, grip and threaded portion
- Head, recess and drilling configuration
- Material, strength grade and finish
Include quantity, required delivery date, quantity breaks, drawing revision and document or traceability requirements. State explicitly whether an alternative may be considered.
The actual manufacturer, configuration, availability, price, lead time and documents will be confirmed in the agreed quotation. This listing does not establish stock or installation suitability.
