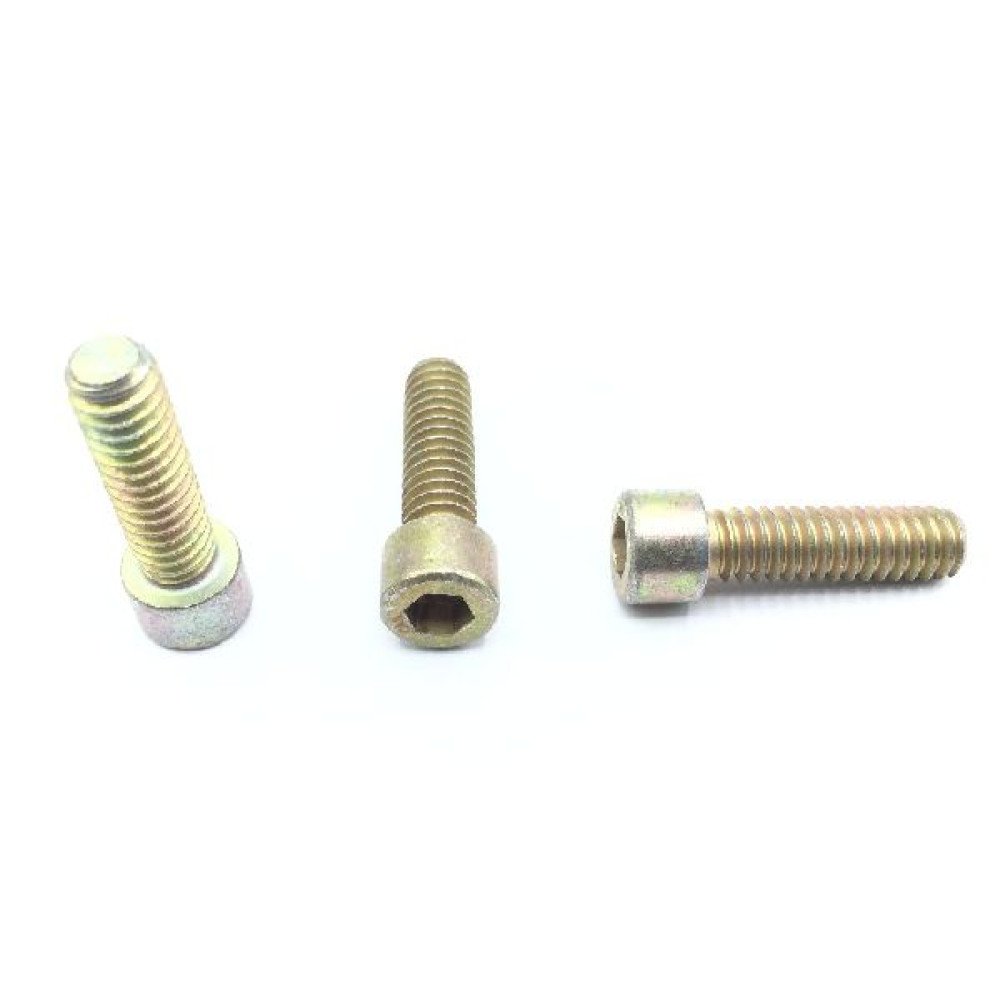

NAS1352-4-14P — Screw
- Listed part number:NAS1352-4-14P
- Catalogue reference:FSHW-B9BFB27FAEF0
- Availability: Availability confirmed in your offer
Price on request
Product overview
Compare screws and bolts by the complete reference, thread, head and grip requirements. Preserve suffixes when requesting quantities or alternatives.
Description
Technical details and documents
| Requested part number | NAS1352-4-14P |
|---|---|
| Reference family | NAS1352 |
Technical reference data
| NSN | 5305-00-038-8994 |
|---|---|
| Product Series | NAS |
| Head Style | Flat chamfer |
| Material | Steel |
| Surface Treatment | Qq-p-416 type 2 cl 3 federal specification single treatment response |
| Thread Class | 3a |
| Fastener Length | Between 0.859 inches and 0.891 inches |
| Hardness Rating | 38.0 rockwell c and 45.0 rockwell c |
| Head Height | Between 0.244 inches and 0.250 inches |
| Internal Drive Style | Hexagon |
| Min. Tensile Strength (psi) | 170000 pounds per square inch |
| Minimum Yield Strength | 150000 pounds per square inch |
| Specification Data | 80205-nas1352 professional/industrial association standard |
| Thread Diameter | 0.250 inches |
| Thread Direction | Right-hand |
| Thread Length | Between 0.759 inches and 0.891 inches |
| Thread Qty Per Inch (tpi) | 20 |
| Thread Series Designator | Unrc |
| Width Across Flats | Between 0.187 inches and 0.190 inches |
| Head Diameter | Between 0.365 inches and 0.375 inches |
Values retain their original units and notation. Confirm suitability against the current drawing or standard before ordering.
Details to include with your quotation request
- Thread series, pitch and class
- Length, grip and threaded portion
- Head, recess and drilling configuration
- Material, strength grade and finish
Include quantity, required delivery date, quantity breaks, drawing revision and document or traceability requirements. State explicitly whether an alternative may be considered.
The actual manufacturer, configuration, availability, price, lead time and documents will be confirmed in the agreed quotation. This listing does not establish stock or installation suitability.
