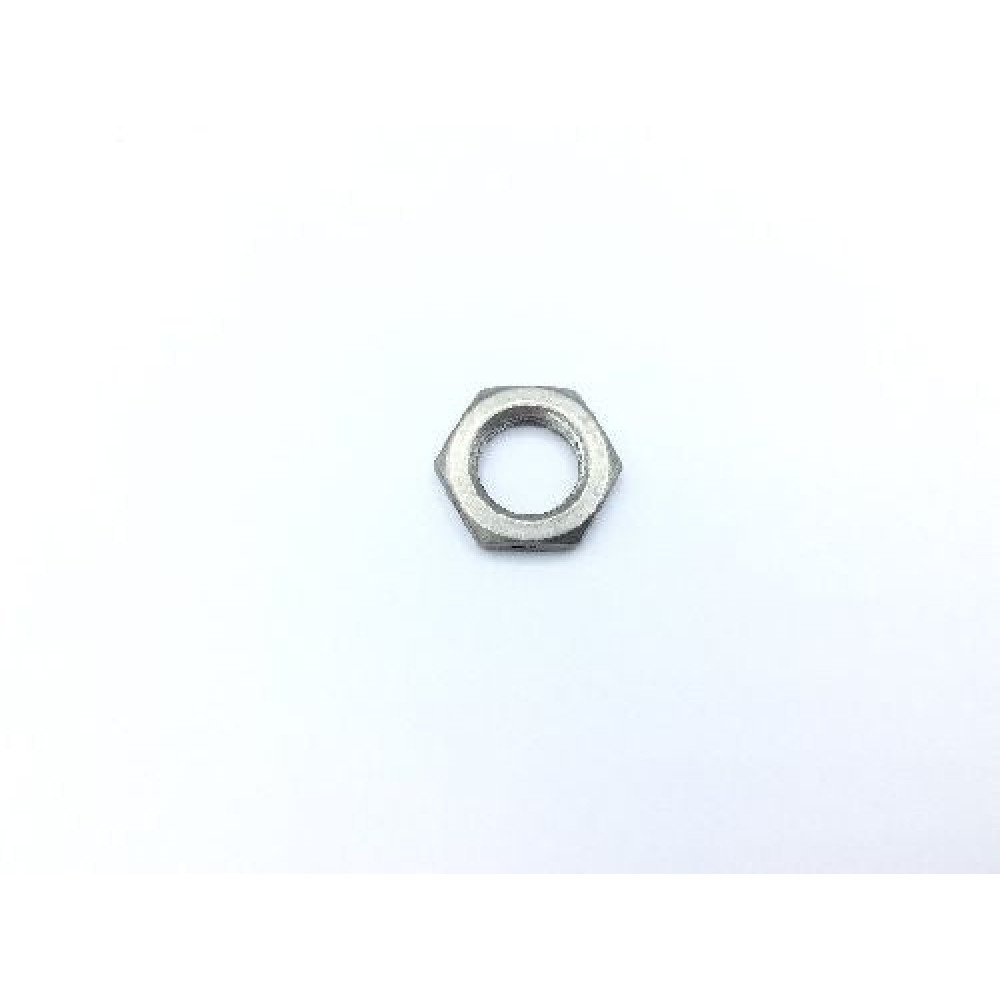

NAS1423C8 — Nut
- Listed part number:NAS1423C8
- Catalogue reference:FSHW-F660E99874C7
- Availability: Availability confirmed in your offer
Price on request
Product overview
Find nuts and nutplates for a specified fastening assembly. Thread, locking type and mounting geometry must match the requested configuration.
Description
Technical details and documents
| Requested part number | NAS1423C8 |
|---|---|
| Reference family | NAS1423 |
Technical reference data
| NSN | 5310-01-058-4656 |
|---|---|
| Product Series | NAS |
| Material | Iron alloy 660 |
| Surface Treatment | Qq-p-35 federal specification single treatment response |
| Thread Class | 3b |
| Thread Series | Unjf (fine thread with external controlled root radius) |
| Thread Size | 0.500 inches |
| Bearing Surface Finish | 125.0 microinches |
| Bearing Surface Type | Chamfered |
| Countersink Angle | 109.0 degrees nut and 111.0 degrees nut |
| Drilled Hole Diameter | Between 0.045 inches and 0.050 inches |
| Hole Configuration Style | Configuration b |
| Hole Type And Quantity | 3 drilled |
| Nut Height | Between 0.146 inches and 0.166 inches |
| Nut Style | Hexagon |
| Specification Data | 80205-nas1423 professional/industrial association standard |
| Thread Direction | Right-hand |
| Thread Qty Per Inch (tpi) | 20 |
| Width Across Flats | Between 0.740 inches and 0.752 inches |
Values retain their original units and notation. Confirm suitability against the current drawing or standard before ordering.
