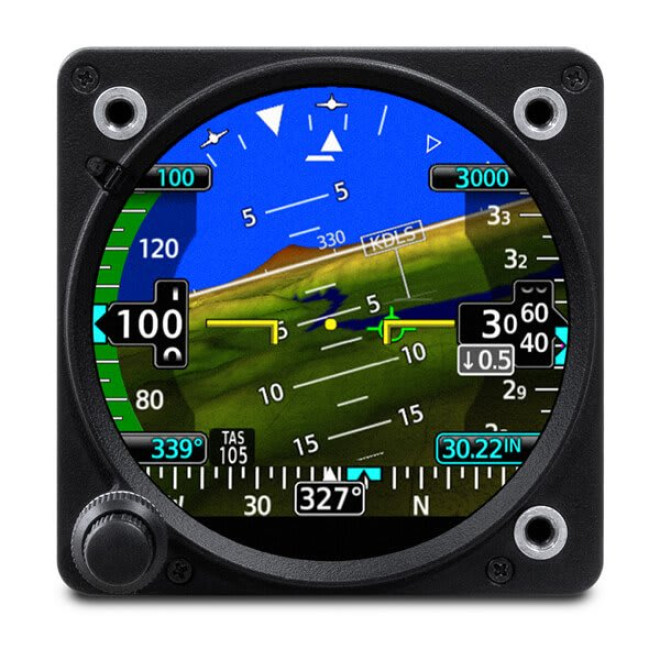

GI 275 for Helicopters, Attitude Indicator (AI)

GI 275 for Helicopters, Attitude Indicator (AI)

REPLACE ANALOG GAUGES WITH ELECTRONIC DISPLAYS

Adaptable to a range of instrument formats and functions, our GI 275 electronic displays let you retrofit your Part 27 helicopter with modern, reliable touchscreen display technology.

יכולות עיקריות

• Out with the old, in with the new. It flush mounts in a standard 3-1/8” round cutout.
• It’s STC’d for select Part 27 helicopters.
• How do you see it? Attitude, altitude, airspeed, CDI, HSI or MFD?
• It comes with built-in VFR GPS — and it’s available with precise digital ADAHRS.
• Connect your cockpit with built-in Wi-Fi ® connectivity and Bluetooth ® technology.
• Know you’ll get home with up to 60 minutes of optional backup battery power.
• BASIC ATTITUDE: Save weight and maintenance expense: replace that aging vacuum pump-driven attitude indicator with a reliable solid-state ADAHRS-driven GI 275 electronic display.
• A LESS ARTIFICIAL HORIZON: To add situational awareness, your display can overlay attitude reference on an optional Garmin HSVT ™ synthetic vision landscape with WireAware ™ wire-strike avoidance technology.

מפרט רשמי נבחר

• Width: 3.25" (82.6 mm)
• Height: 3.25" (82.6 mm)
• Depth: 6.44" (163.6 mm)
• Depth with connector: 7.40" (188.0 mm)
• Unit weight: 1.9 lbs (0.86 kg) to 2.4 lbs (1.1 kg)
• Active display size: 2.69” diameter
• Display resolution: 480 x 433 pixels
• Operating voltage: 14/28 VDC
• Operating temperature range: -20°C to +55°C<
• Altitude range: -1,500 ft to 55,000 ft
• Wi-Fi class: 802.11b/g/n
• Aircraft: Model(s)
• Airbus AS350: BA, B2, B3
• Bell: 407 1
• Robinson: R66

זיהוי רשמי של מוצר Garmin

• יצרן: Garmin
• משפחת מוצר: GI 275 for Helicopters
• תצורה: Attitude Indicator (AI)
• מק״ט / SKU: 010-GI275-11

תצורה פעילה זו אומתה מול קטלוג Garmin Aviation בארה״ב בתאריך 2026-07-24. זמינות, התאמה לכלי הטיס, דרישות תקינה והתקנה יאומתו לפני האספקה.

לעמוד המוצר הרשמי באתר Garmin
