SG33BL-CAN-12V Cable Gland Actuator

SG33BL-CAN-12V Cable Gland Actuator

SG33BL-CAN-12V Cable Gland Actuator is the specific Hitec RCD catalog item under manufacturer part number 40033C. This page refers to the exact model or configuration named above; final compatibility, included components, approval basis, and documentation should be confirmed against that identifier before ordering.

Exact product identification

• Manufacturer: Hitec RCD
• Product: SG33BL-CAN-12V Cable Gland Actuator
• Part number / SKU: 40033C
• Model: SG33BL-CAN-12V

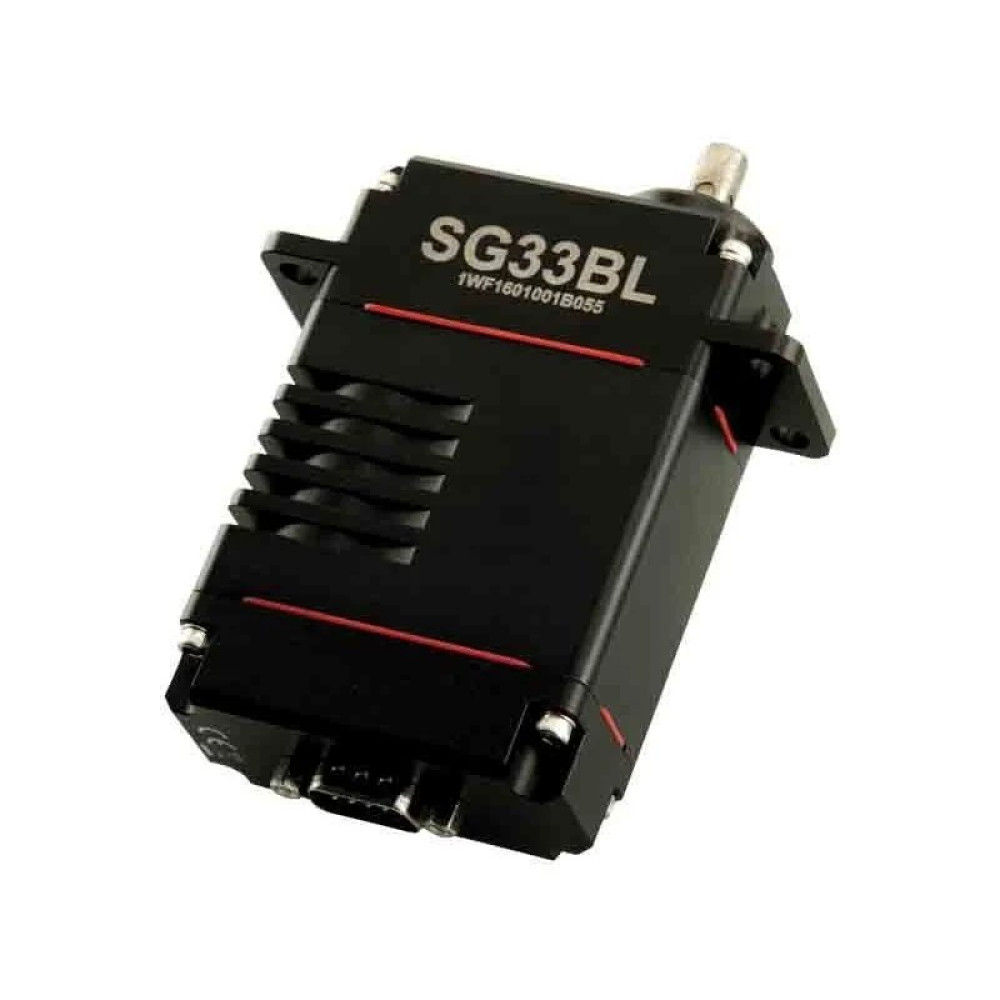

The Hitec SG33BL-CAN-12V is a waterproof industrial brushless actuator with a cable-gland connection and CAN 2.0A/B or UAVCAN control. It operates from 9.0 to 15.0 V and uses a contactless magnetic encoder, a 32-bit programmable digital amplifier, six ball bearings, and two needle bearings.

Performance and construction

At 12 V the actuator is rated for 0.185 seconds per 60 degrees with stall torque up to 147.0 kgf-cm. Its black-anodized aluminium housing measures 64 x 33 x 90 mm, provides IP68 environmental protection, and supports programmable servo travel or multi-turn operation. The square 6.5 mm output and hardened gear train are intended for demanding industrial and autonomous systems.

Ordering note: Request this item using reference 40033C so Fly Supply can verify the exact configuration, current availability, supporting documents, and application fit before supply.
