Choosing an aircraft antenna: function, coax and installation compatibility
Prepare an aircraft antenna enquiry with the radio model, antenna P/N, connector, coax and mounting details. A practical selection guide for customers in Israel.
Ask about this requirementThe quick answer

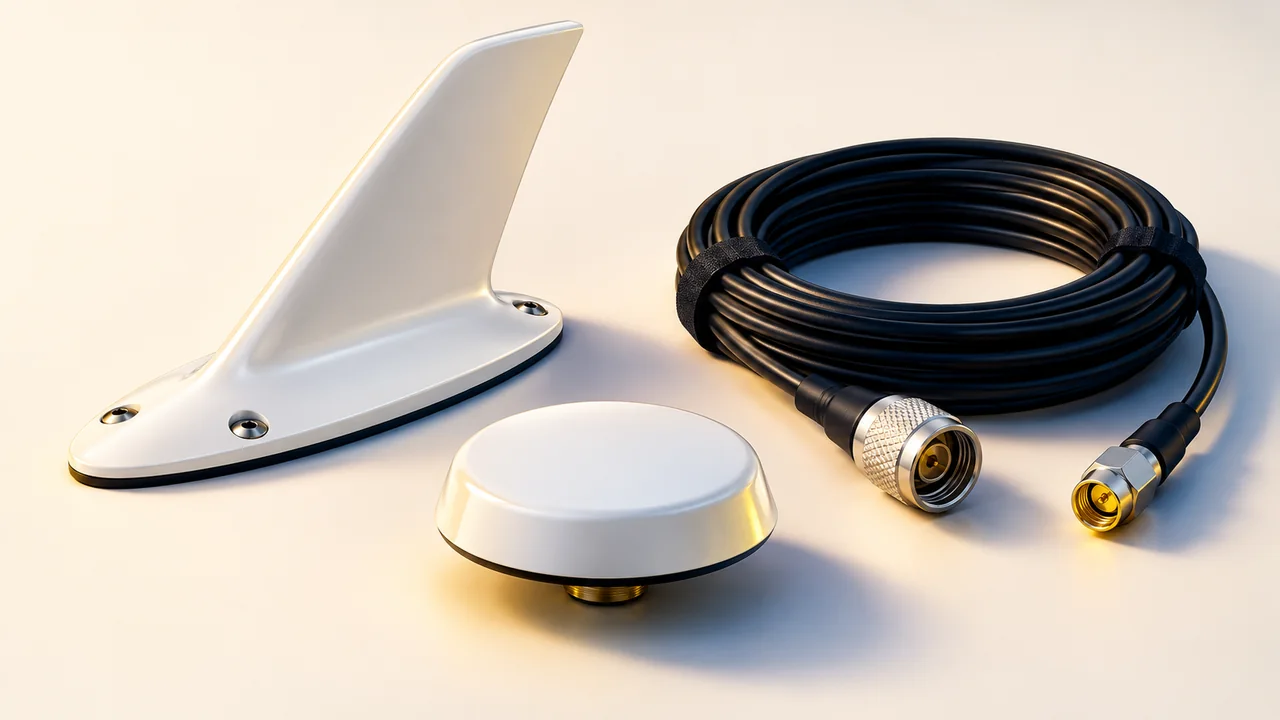

Start with the equipment the antenna serves and the exact installed configuration. A COM antenna, a GPS antenna and a transponder antenna do different jobs; a similar shape or matching connector does not establish compatibility. Record the existing antenna and radio P/Ns, then ask the responsible installer to review the frequency, cable path, mounting arrangement and applicable installation data together. If replacing an item, preserve the original reference until a documented alternative is accepted.
Illustrative example — not a real customer case
A worked purchasing example: A matching connector does not complete an antenna order
In this illustrative enquiry, a customer has a replacement COM radio and asks for an antenna with the same connector as the old one. The cable and antenna references have not yet been identified.
What to include
- Record the old and proposed radio models, existing antenna P/N and aircraft details.
- Add cable identification, approximate length and accessible photographs of the connection path.
- Ask the installer to confirm the required antenna/cable package and list any separate kit items before an offer is accepted.
What this resolves
The quotation can distinguish an exact antenna replacement from a larger reviewed installation package. Connector similarity is not treated as approval.
Define the function before the shape
Write down whether the request concerns communication, navigation, GPS, a transponder or another identified system. Include the equipment manufacturer, full model and variant. One antenna assembly may support more than one function, so do not infer its role solely from its appearance. State whether the task is an exact replacement, a new installation or investigation of an existing problem. A useful enquiry separates what is known from what still needs identification. For an unclear label, send an accessible photograph and the equipment records instead of guessing the missing suffix.
Treat the antenna and cable as one requirement
Identify the connectors at both ends, the cable reference if known, approximate installed length and any intervening splitter or adapter. A connector adapter can make two items physically join without establishing the required electrical performance. Do not assume all coax is interchangeable or that a cable supplied with one kit suits another installation. A qualified installer should confirm the cable specification, acceptable loss, routing and installation basis for the particular system. The purchasing request can gather these details without becoming a wiring or installation procedure.
Separate mounting fit from installation eligibility
Useful evidence includes the accessible mounting footprint, existing antenna reference, airframe construction and an overall location photograph. The aircraft structure and the antenna's mounting or ground-plane requirements can matter even when the new base appears to cover the old holes. Avoid ordering from dimensions alone. Ask which gasket, mounting hardware, cable or installation kit is included and which items require separate supply. Before accepting an alternative, have the installation organisation review the exact aircraft and current manufacturer data; procurement confirmation does not itself authorise installation.
What to compare
| Check | Why it matters | Include in the enquiry |
|---|---|---|
| System role | Different antennas serve different equipment | Equipment model and intended function |
| Exact identity | A suffix can distinguish a configuration | Existing antenna and equipment P/Ns |
| RF path | Cable, connectors and adapters affect the package | Cable reference, length and both connector ends |
| Mounting and documents | Physical fit is only one part of review | Aircraft details, accessible photos and installation basis |
Your enquiry checklist
0 / 6 checked
Common mistakes to avoid
- Choosing by antenna silhouette or connector alone
- Changing a documented cable type without review
- Treating an alternate P/N as an already approved replacement
Related products and services
Common questions
Can I use the same antenna after replacing the radio?
Possibly, but the new equipment's installation requirements and the existing antenna/cable configuration must be checked together. Include both equipment references in the enquiry.
Is a mounting footprint enough to identify a replacement?
No. It helps narrow the physical arrangement but does not establish function, electrical compatibility or aircraft eligibility. Preserve the original P/N and supporting records.
What if I only have photographs?
Send accessible overall and label photographs and explain which references are unknown. We can clarify the supply request before quoting; do not remove installed equipment just to obtain an image.
